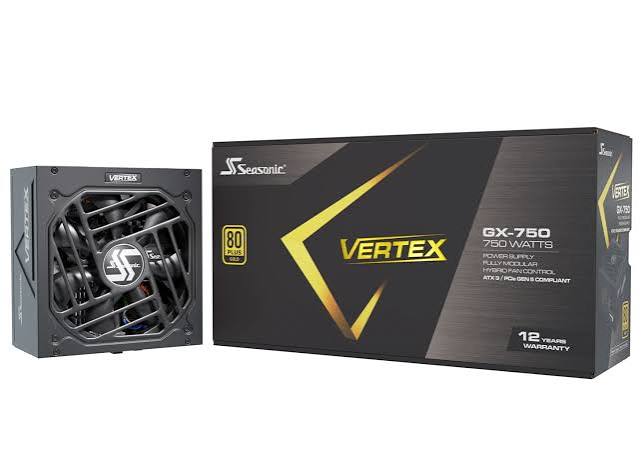

What Makes the Seasonic VERTEX GX PSU Different?
Seasonic VERTEX GX power supply brings together compatibility with modern components, modular connectivity, and hybrid cooling. The series is available in 1200 W, 1000 W, 850 W, and 750 W models, which makes the selection wider, depending on the PC build’s technical specifications.
The 160-mm-long chassis makes it easier to install the power supply, although you’ll also need to leave some space for cables. The practical value of this combination becomes apparent during assembly: the user connects the necessary cables, checks compatibility with the GPU, and selects the power output based on the system load. The series covers systems with varying power consumption, so the choice of a higher-end model should be based on the needs of the CPU, GPU, and planned upgrades.
High Efficiency and Stable Power Delivery
The VERTEX GX PSU series is 80 PLUS® Gold certified and confirms its compliance with energy efficiency requirements. Stable power delivery depends on another mechanism: feedback controls the output voltage and adjusts the power circuit’s operation when the load changes. Output capacitors maintain power supply stability at the initial moment of such a transition. For example, launching a complex graphics scene can rapidly change GPU power consumption, and the power supply must respond to this quickly so the PC user doesn’t even notice it.
Therefore, efficiency and stability complement each other: the former characterizes energy losses, while the latter describes the behavior of the output power under load.
ATX 3.1 Compatibility for Modern Pc Components
ATX 3.1 compatibility means that the Seasonic VERTEX GX PSU is designed to meet modern requirements for computer power supplies, particularly during brief spikes in load. During rapid transitions (that typically come from the GPU), the PSU must maintain the output parameters within the permissible limits.
The current VERTEX GX PSU version also comes with a 12V-2×6 cable in the box. Earlier models in the series used 12VHPWR, so it’s a good idea to check the standard designation and package contents of a specific device before purchasing. This will help ensure you get the correct revision and can verify in advance that it’s compatible with the power connector on your chosen graphics card.
Reliable Power Delivery for High-Performance Graphics Cards
To power a high-performance graphics card, it is important to have a capable +12V rail, the appropriate cable, and sufficient total power from the PSU. In the VERTEX GX-750, the +12V rail is rated for 62 A, or 744 W. The power is shared between everything on that rail, including the CPU, so the graphics card can’t get all of it.
The standard 12V-2×6 cable allows you to connect a compatible GPU without a multi-pin adapter. Please note that the connectors must be inserted fully until they click into place, without applying excessive force or side pressure.
Advanced Security Features for System Safety
The VERTEX GX PSU is backed by the following protection mechanisms: OVP, UVP, OCP, OPP, SCP, and OTP. That’s what they do within the system:
- OVP and UVP monitor excessive and insufficient output voltage;
- OCP monitors excessive current;
- OPP monitors power overload;
- SCP monitors short circuits;
- OTP monitors overheating.
Each mechanism responds to a specific hazardous condition and, under appropriate circumstances, shuts down the power supply to avoid damage. These protective functions provide an additional level of safety, while the voltage conversion and control system ensures stability during normal operation.
Also Read: You’re Not Protecting Your Data, You’re Pretending To
Cooling System and Quiet Operation
A 135-mm fan with an FDB hydrodynamic bearing and hybrid control handles cooling for the VERTEX GX power supply. Under the right conditions, the fan can remain stationary, eliminating its own noise.
Once started, the bearing uses a thin oil film between the working surfaces to reduce friction or vibration. This is how FDB helps maintain quiet operation. The fan’s start-up torque depends on temperature, load, and airflow, so there’s no single guaranteed threshold for any case.
Build Quality and Long-Term Reliability
The long-term reliability of the VERTEX GX PSU depends on a combination of design, cooling, and operating conditions. Seasonic offers a 12-year warranty on this series under specified terms – this is a concrete commitment from the manufacturer to support the product.
In particular, modularity does not imply universal cable compatibility: you must use the included cables or officially compatible ones. You should also ensure adequate airflow to the fan and avoid applying mechanical stress to the connectors. Together with the design solutions implemented under the VERTEX GX PSU hood, you can prolong its lifespan.
Please keep the proof of purchase and follow the installation instructions to get the full post-purchase service from the manufacturer.
Also Read: The Hidden Risks of Buying Hardware Wallets on Amazon (and Where to Buy Safely)
Conclusion: Why Choose the Seasonic VERTEX GX PSU for Your Modern PC?
The VERTEX GX is the right choice for builds that require modern connectivity, controllable cooling, and long-term manufacturer support. Properly selected power and careful installation will allow you to take full advantage of the series’ capabilities to meet your PC’s needs.
